Automatic Swing Door

We Are Available For You

Automatic Swing Door

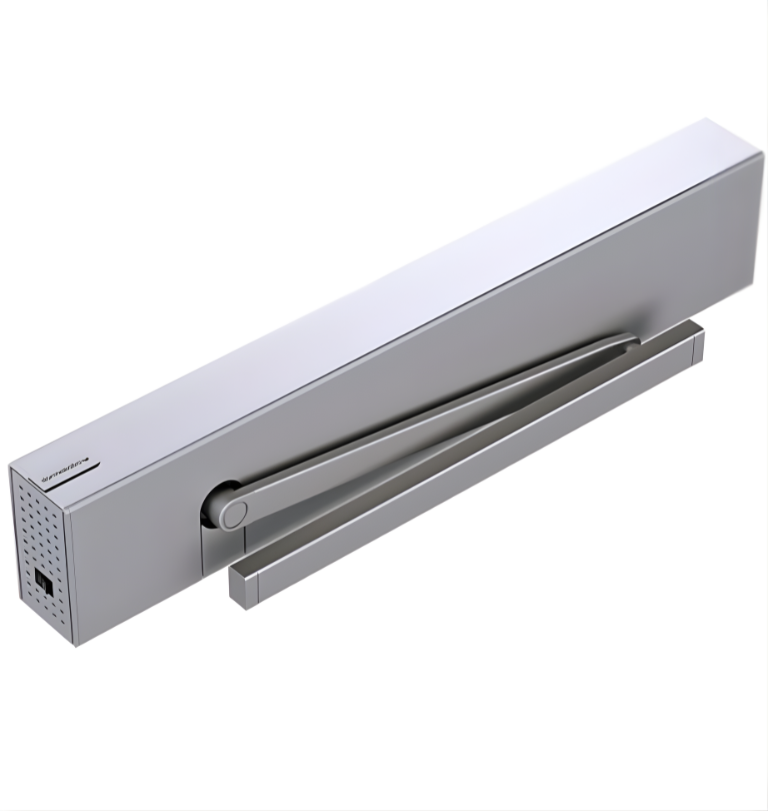

Rudhar has a new, elegant design with high aesthetic cleanness. It is an operator for single- or double-leaf swing doors and is ideal for continuous operation. It is available in a version with automatic opening and closing or with spring closing system and is recommended for public locations, such as hospitals or healthcare facilities, locations open to the general public such as hotels, offices, shops and banks, as well as in residential settings. It is activated using buttons, sensors and key-operated or rotating selectors. Various parameters can be selected, including the Push and Go function, which is essential whenever you want to activate automatic opening by an initial manual push. With its low-energy function, which enables the door to be opened with low energy and speed, Operator is particularly suited to settings where there are people with mobility problems.

Related Commercial Doors

Frequently Asked Questions

Common questions answered by our technical team.

A door closer is a passive mechanical device that uses a spring to close the door after it has been manually opened. An automatic swing door operator is an electro-mechanical system that both opens and closes the door using a motor, no manual push required, suitable for disabled access compliance.

Yes. Automatic swing doors are widely used for ADA-compliant and EN 16005-compliant accessible entrances. The door must be set to low-energy mode when used for accessible entrances. Rudhar Group can supply and certify operators for accessible entrance compliance.

Yes. Automatic swing door operators from Rudhar Group have potential-free contact inputs that can be connected to card readers, keypads, biometric readers, intercom systems, loop detectors, and building automation systems.

In spring-closing mode, the door operator assists the opening of the door (powered opening) but uses a mechanical spring return to close the door (non-powered closing). This provides energy efficiency and ensures the door closes reliably even during a power interruption.

Standard swing door operators handle door leaf weights of up to 100-120 kg. Heavy-duty operators are available for up to 200 kg. Maximum leaf width is typically 1,100-1,200 mm for single leaf.

Yes, with appropriate specification. Outdoor automatic swing door operators must be rated IP54 or higher, suitable for the ambient temperature range, and fitted with wind-load brackets to prevent uncontrolled door movement in high winds.
