Machine High Speed Door

Machine High Speed Door

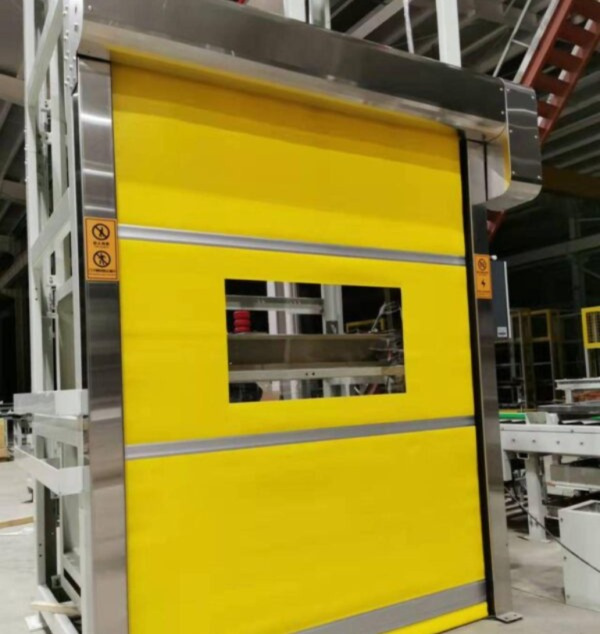

Rudhar machine guard doors are high-speed doors that protect people and material from access to moving automatic machine areas. Specially designed for automatic or robotic machine areas, this gate can be installed in addition to barricades or security walls. The GRS Machine Guard Door enhances automation by isolating the area meeting high industry standards and reducing accidents. A durable and robust structure is designed for use in an industrial environment. Your specific requirements and wishes are at the forefront of the design and manufacturing process, so that doors are created that are characterized by quality and individuality down to the smallest detail. They are the doors that the market demands and that can be found in every industry and every building. Wherever you go, you're likely to come across an Rudhar Gate.

Frequently Asked Questions

Common questions answered by our technical team.

A machine high-speed door (also called a machine protection door or machine guarding door) is a compact, fast-cycling door designed to enclose CNC machines, robotic cells, machining centres, automated production lines and other industrial machinery.

Machine high-speed doors are specifically designed for compact machine enclosures. They have a much smaller footprint, operate at very high speeds up to 2.0 m per second for minimal cycle time impact, and are integrated with the machine safety PLC rather than operating independently.

Yes. Rudhar Group machine high-speed doors are available with PLC integration. The door open-close cycle is triggered directly by signals from the CNC machine or robot controller via digital I/O (typically 24V DC). Door status is fed back to the machine control.

Machine guarding doors must comply with ISO 13857 (safety distances), EN 953 (guards general requirements), and EN 14119 (interlocking devices). Required safety features include door-closed confirmation switch interlocked with machine operation and obstacle detection.

Machine high-speed doors are available in widths from 600 mm to 3000 mm and heights from 600 mm to 2500 mm. Non-standard sizes are available on request, determined by the machine opening geometry and clearance requirements.

A machine door that opens and closes in 1-2 seconds versus a manual door that takes 3-5 seconds saves 4-8 seconds per machine cycle. On a machine running 200+ cycles per day, this can translate to 15-25 minutes of additional productive machine time per day.
