Automatic Boom Barriers by Rudhar Group
Get Best Quote

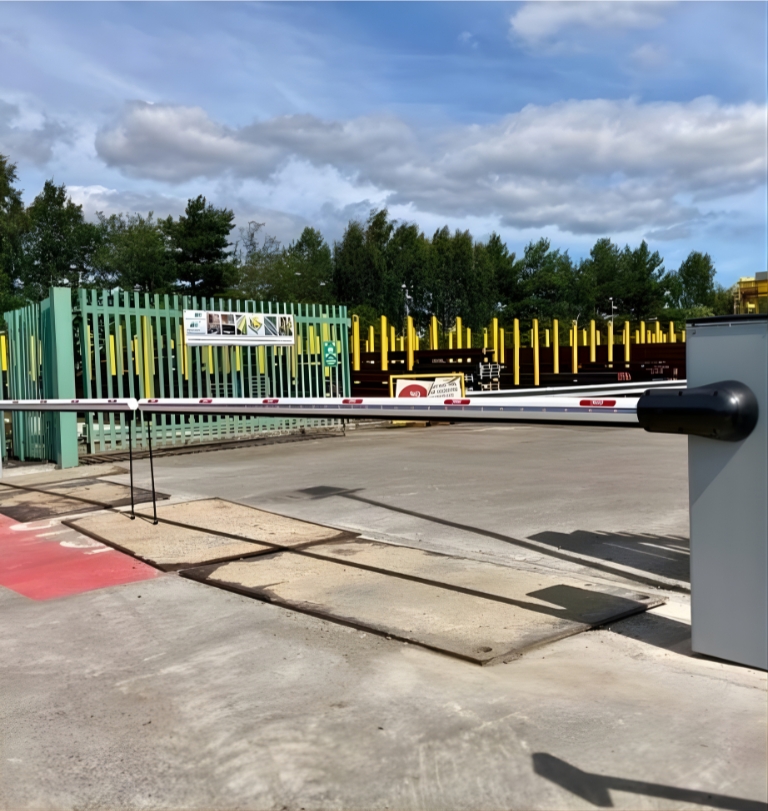

Our barriers are designed to allow individual vehicles to pass through and regulate the entry and exit of vehicles. Depending on the area of application, we offer electrically operated models. The latter are designed for continuous use and can easily handle a high volume of traffic. The cantilever lengths are variable, which means that large pitch widths can also be secured. With the help of data management, devices can be easily switched on and off. Ideal solution for heavy traffic with quick opening and closing.

  • Available in different size variance namely, upto 6m & 8m
  • Robust housing incorporating the working links for boom barrier working
  • Regulates pedestrian and vehicle traffic with hassle free operation
  • Resting stand as per the client’s requirement.
  • Manual release in case of power cut off
  • Heavy duty powder coated steel casing & Aluminium extruded boom profile.
  • Efficient security at the exit and the entry points of factories, office complexes,         corporate houses, residential Buildings, parking lots, toll tax plazas or any road.
  • Boom barriers are easy to operate through push button/remote control         systems/magnetic loop detectors/ flashing lamp/ RFID access system etc.
  • Optional symbolic LED notification for easy passing access

Applications

Rudhar Group boom barriers are commonly installed at:

  • Parking lots and multi-level car parks
  • Residential societies and gated communities
  • Corporate offices and factory entry/exit gates
  • Toll tax plazas and road checkpoints
  • Shopping malls and commercial complexes

Technical Specifications

  • Arm length: Up to 6m or 8m variants
  • Housing: Heavy-duty powder-coated steel casing
  • Arm material: Aluminium extruded profile
  • Access integration: RFID, magnetic loop detector, remote control, push button
  • Power backup: Manual release during power cut

Related Barrier Products

Service Area

Rudhar Group manufactures at our facility in Delhi NCR and supplies Boom Barrier across North India — Delhi NCR, Haryana, Punjab, Himachal Pradesh, Jammu & Kashmir, Uttar Pradesh, Madhya Pradesh and Rajasthan. Manufacturing has been running since 1998.

Each unit is manufactured to the opening size supplied by the buyer, so share your site dimensions and location for a quotation. Site survey and installation support are arranged for projects across the states listed above.

Frequently Asked Questions

Common questions answered by our technical team.

A boom barrier (also known as an arm barrier or road barrier) is an automatic barrier with a horizontal arm that blocks and allows vehicle passage. It is used at parking facilities (residential complexes, malls, offices), toll plazas, industrial entrances, petrol stations, railway level crossings, and airports.

A boom barrier controls vehicle access by raising and lowering a horizontal arm and does not provide a solid barrier against a determined vehicle. A sliding gate provides a solid structural barrier appropriate where maximum security is required. Boom barriers are preferred where fast throughput is needed with lower security requirements.

Standard boom barrier motors operate on 230V AC, 50Hz single-phase supply and consume 60-200W during operation. Standby power consumption is typically 5-15W. Optional battery backup systems allow 100-500 operations on backup power after a mains failure.

Boom barriers can be triggered by vehicle induction loop in the road, remote control, RFID card reader, push button on a pedestrian panel, QR code scanner, intercom with guard release, ANPR camera with plate recognition, or integration signal from a parking management system.

Monthly: check arm balance, clean optical sensors. Quarterly: lubricate pivot and hinge points, check arm joint fasteners. Bi-annually: motor load test, limit switch adjustment. Annually: full service including motor winding resistance check, spring replacement if required, and cabinet seal inspection.

Yes. Rudhar Group supplies boom barriers rated for continuous-duty toll plaza applications with cycle rates of up to 600-1200 operations per day. These heavy-duty models are compatible with ETC (Electronic Toll Collection) systems, FASTag RFID readers and toll management software.
